LMT-500 70/100V Commercial Audio Line Matching Transformer
Dynasty ProAudio LMT-500 70V/100V Commercial Audio Line Matching Transformer is a unique problem-solver for residential and commercial applications, this rack-mount high quality line-matching transformer is designed to convert the output of any standard 8 ohm amplifier for use with a 70/100 volt public address sound distribution system under 500 watt RMS power handling, allows multiple pairs of speakers to be run to a single amplifier. Different scenarios where the LMT-500 would be useful, for example would be an expanding business or retail establishment where more speakers must be added to the existing audio system.
By connecting the LMT-500 amp transformer to the inputs of the existing 8 ohm, the installer can run additional 70V/100V speakers with transformer taps without having to add another amp, this unit is ideal for both Professional Stage or Public Address / Commercial Audio applications which require running multiple pairs of speakers to a single amplifier.
Feature:
* Housed in a Rugged 1.5U Metal Chassis with rack mount design
* Internal Mounted Constant Voltage Transformers
* 70V/100V Speaker Output
* Selectable Output between Stereo and Bridge Mono
* Input 1 and Input 2 Signal-In LED Indicators
* Rated Input Power: 500W Stereo Per Channel (or 1000W Bridge Mono)
* Frequency: 20Hz - 20KHz
* THD+N: 0.1% @ Rated Power
About this item
- ✅【8 Ohm to 70V/100V Transformer Built-In】Coverts an 8-ohm amplifier to a 70V/100V amp and allows multiple pairs of speakers to be run to a single amplifier
- ✅【 Extensive Short Circuit and Overload Protection】
- ✅【Selectable Output between Stereo and Bridge Mono 】 You can set up a Public Address Distribution System for the single music source playback for Left and Right under Stereo mode, or set for two different signals and distribute them to different zones under Mono mode.

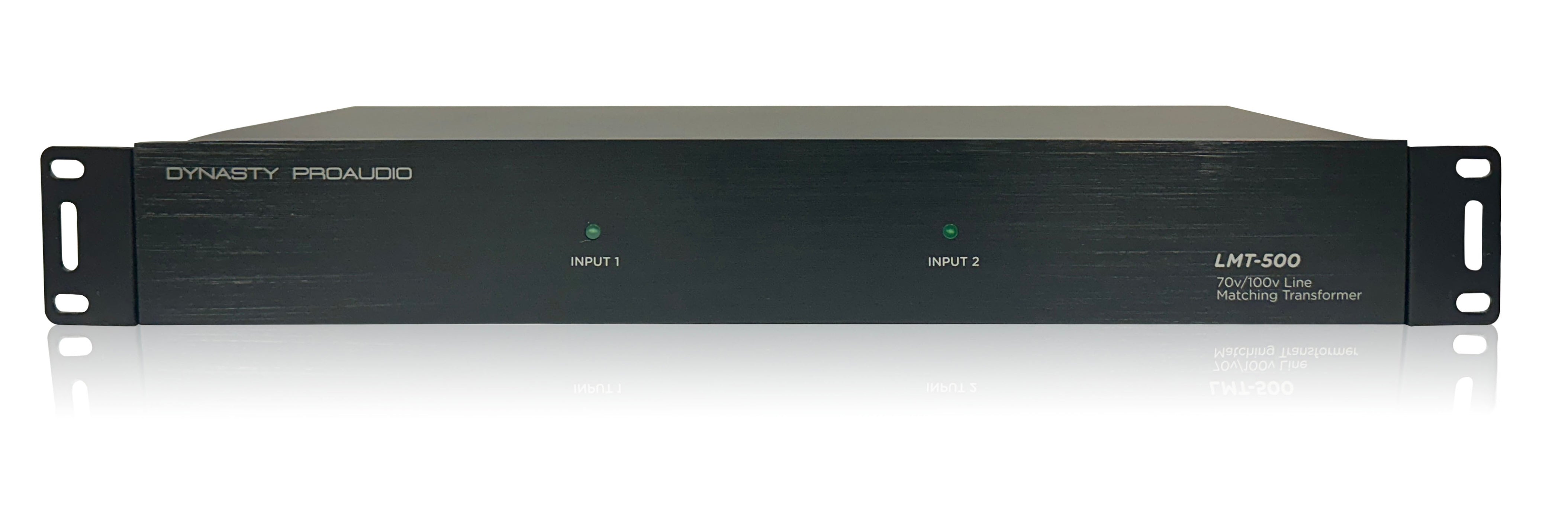

- ✅【Signal-In LED Indicators】Input 1 and Input 2 signal-In LED indicators on the front panel
- ✅【Rack Mount Design】Standard 19” housed in a rugged 1.5U metal chassis, easy to install with rack mount design
